Nanobubbles vs. microbubbles

Size: where the line is drawn

The two classes are separated first by size. A nanobubble is typically smaller than 1 µm, and reported nanobubble populations commonly sit at 100–200 nm. A microbubble is typically 1–100 µm. Definitions vary slightly between sources, but the two ranges are distinct Akshit et al., 2024; Alheshibri et al., 2016.

Size matters because the other differences follow from it: how fast a bubble rises, how much light it scatters, how much surface it offers per unit of gas, and how it ends.

The rows are discussed, with their sources, in the sections below.

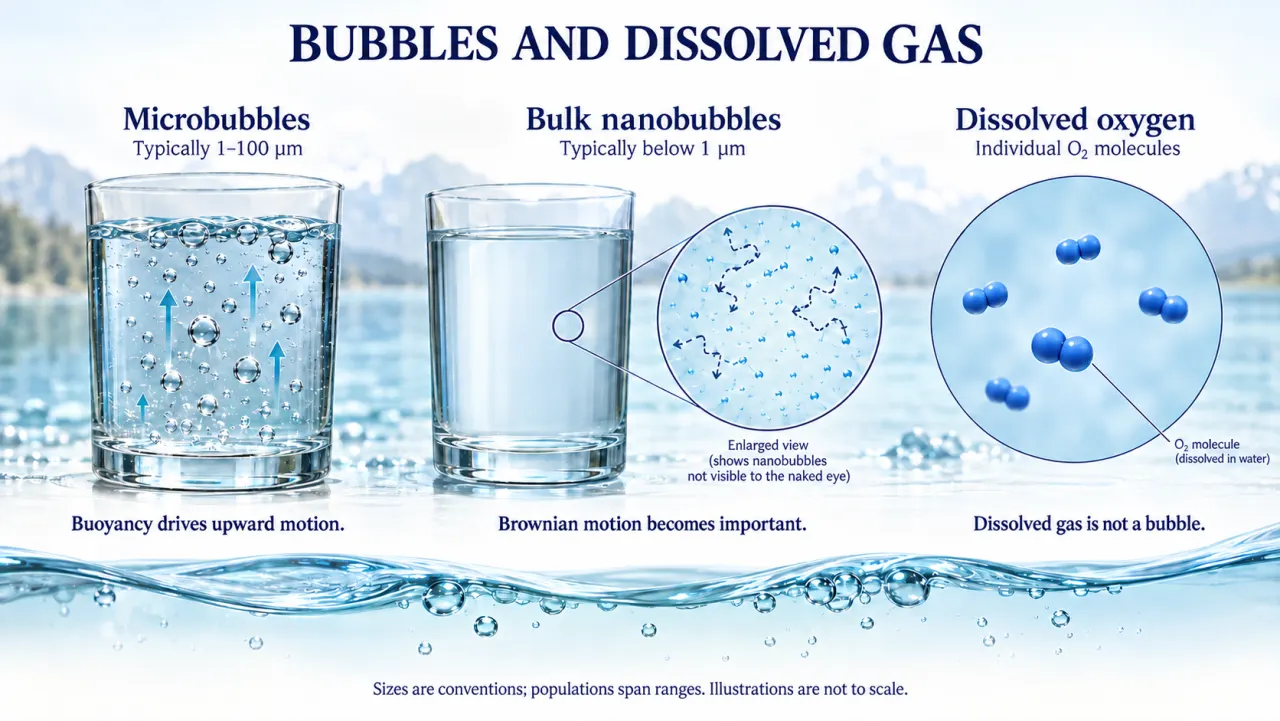

Buoyancy and motion

Microbubbles rise and nanobubbles stay. Microbubbles have significant buoyancy and rise steadily to the surface, following Stokes' law. Nanobubbles have negligible buoyancy: gravity and buoyancy are overcome by other forces, so they move randomly by Brownian motion and have remained suspended for weeks to months Ebina et al., 2013; Foudas et al., 2023; Akshit et al., 2024.

That persistence is itself a puzzle. By the Young–Laplace equation a nanobubble should dissolve within microseconds, and the models proposed to explain why it does not are set out in Generation mechanisms and stability.

Appearance: milky versus clear

The difference visible to the naked eye is turbidity. Microbubbles, typically 10–50 µm when generated, scatter enough light to make the water look milky; because they rise quickly and burst at the surface, the milkiness fades soon after generation Agarwal et al., 2011.

Nanobubbles are too small to cloud the water, so a nanobubble suspension looks transparent Ebina et al., 2013; Foudas et al., 2023. During generation the two classes often appear together: the liquid turns milky with microbubbles, which rise and burst, leaving the transparent nanobubble suspension behind Foudas et al., 2023.

How each one ends

Microbubbles usually leave by the surface. They rise and burst at the gas–liquid interface, or shrink into nanobubbles before collapsing Takahashi et al., 2007; Agarwal et al., 2011.

Nanobubbles end inside the liquid. They shrink and dissolve into it, or collapse, a process reported to release free radicals and significant energy Takahashi et al., 2007; Agarwal et al., 2011. The radicals involved, mainly the hydroxyl radical, are described in Key physico-chemical properties.

Surface area and charge

The small size also changes how a bubble exchanges gas and interacts with its neighbors. Nanobubbles showed higher mass transfer rates than macrobubbles, attributed to their very large specific surface area relative to volume Fan et al., 2010; Akshit et al., 2024.

Nanobubbles also carry a negative surface charge: their zeta potential typically measured −20 mV to −50 mV at neutral pH, and a magnitude above 30 mV is cited as enough repulsion to keep bubbles from coalescing Hewage et al., 2021; Akshit et al., 2024.

Measuring a mixed population

Freshly generated water often contains both classes, which complicates measurement. In dynamic light scattering (DLS), scattered intensity scales with diameter to the sixth power (d⁶), so a few large microbubbles or contaminants can mask the signal of millions of nanobubbles and shift the reported size upward Nirmalkar et al., 2018; Li and Zhang, 2022. Counting methods, and the controls needed before tracked particles can be called bubbles, are covered in Characterization and measurement.
